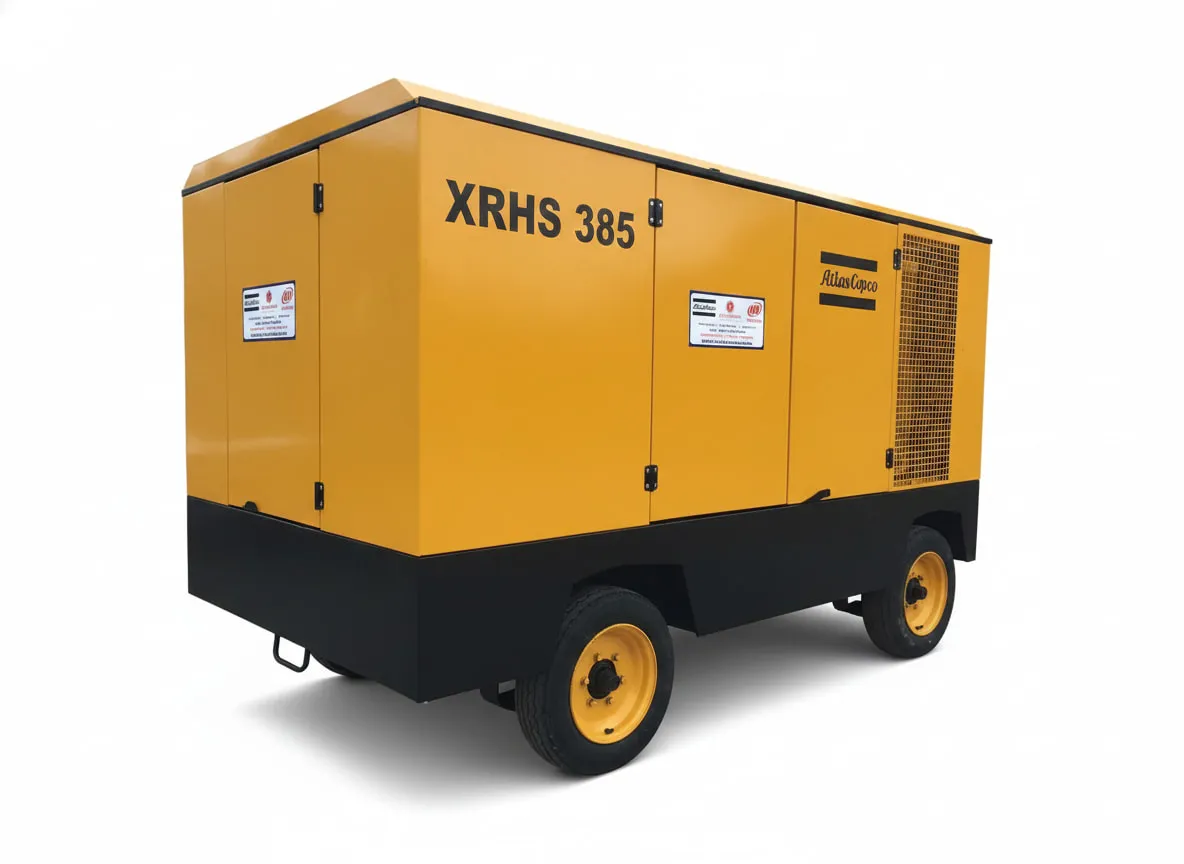

Atlas Copco XRHS 385
Portable Diesel Compressor
The Atlas Copco XRHS 385 is a diesel portable compressor rated at 20 bar working pressure and 22.5 m³/min FAD, used on mining and geothermal drilling work. It is fitted with a Caterpillar C13 engine. This page is a catalogue/reference model.
- 20 bar Working pressure
- 22.5 m³/dk Airflow (FAD)
- Caterpillar C13 Engine / class
- Catalogue model Availability
Need details on this compressor?
Planned technical advice — office in İstanbul Dudullu
Overview
Atlas Copco XRHS 385: what is it?
The Atlas Copco XRHS 385 is a diesel portable screw compressor in the XRHS series. Working pressure is 20 bar; free air delivery (FAD) is 22.5 m³/min. The engine is a Caterpillar C13 (328 kW).
This high-pressure class is used for mining and geothermal drilling, including DTH drilling. The record is for technical comparison and the visual catalogue; we do not sell new machines. Used units and rental are quoted from the İstanbul Dudullu office.
Uygunluk
Applications
Jobsite
Breakers, drills and general site work
Road work
Asphalt cutting, surface work and mobile routes
Kumlama
Blasting and surface preparation
Bakım & Servis
Temporary air and plant support
Bu Makine Size Uygun Mu?
- Jobsite and general construction Very suitable
- Road work / mobile crews Very suitable
- Blasting / surface prep Very suitable
- High-pressure drilling Very suitable
- Continuous plant line Alternative recommended
Performance Özeti
-
20 bar Working pressure
-
22.5 m³/dk Airflow (FAD)
-
Caterpillar C13 Engine / class
-
Catalogue model Availability
Performance Profili
Drilling
Water / ground drilling, DTH drive, well cleaning
High-pressure drilling applications
Sector detayı →Jeotermal
Geothermal well, high-pressure test
High-pressure / booster-supported work
Sector detayı →Bored piling
Kazık kuyu temizliği, casing, hava-lift
Forekazık makinesi yüksek basınç / yüksek debi havası
Sector detayı →Madencilik ve Taş Ocağı
Drilling, blast holes, pit ventilation
Dusty and hard pit conditions
Sector detayı →Spesifikasyon
Technical specifications
Basics
- Brand
- Atlas Copco
- Model
- XRHS 385
- Compressor type
- Portable Diesel Compressor
- Seri
- XRHS
- Condition
- Catalogue / reference model
- Machine no.
- CAT-0134
Performance
- Operating pressure
- 20 bar
- Airflow
- 22.5 m³/dk
- CFM
- 794.3 CFM
Motor
- Motor
- Caterpillar C13
- Engine power
- 328 kW
- Yakıt
- Diesel
Physical specifications
- Ağırlık
- 6.800 kg
Neden Tercih Edilir?
- Madencilik & Jeotermal odaklı sınıf
- 20 bar operating pressure
- 22.5 m³/dk debi
- Caterpillar C13 motor
- Atlas Copco spare parts ağı
- Satış / kiralama yönlendirmesi
Dikkat Edilmesi Gerekenler
- Calculate airflow and pressure need from the job type first.
- Leave a margin for pressure drop on long hose runs.
- Shorten filter and radiator intervals in dusty conditions.
- Confirm hose and fitting class for high-pressure use.
Condition ve teslimat
- Ekspertiz / kontrol
- Katalog kaydı — durum teklifte belirtilir
Logistics
Dispatch and loading
Transport is paid by the party renting or buying. Çiçek Kompresör does not haul the machine; we refer a recovery-truck or lorry firm and share directions. There is no free nationwide delivery in Turkey.
Vehicle class
Machine size decides whether a standard recovery truck, a lorry, or another suitable vehicle is needed. A lorry cannot enter the shop.
Crane and forklift
The shop has a crane. A lorry cannot come inside, so a forklift is called for lorry loading.
No winch rope
Vehicles that can enter the shop, and vehicles without their own winch rope, are loaded with the crane. No standing lorry, no hourly SLA.
Office / service
Sales are used only; we do not sell new machines. The only office is İstanbul Dudullu. On-site service is not a branch network; field work is planned from this office.
Address: Kadosan Oto San. Sit. R Blok No: 8/10, Dudullu OSB, 34755 İstanbul — İstanbul Dudullu
Comparison
Benzer Modeller ile Karşılaştırın
| Özellik | Atlas Copco XRHS 385 | Atlas Copco XRVS 396 Portable Compressor | Atlas Copco XRVS 396 Portable Compressor | Atlas Copco XAHS 408 PACE Portable Compressor | Atlas Copco XRHS 396 Portable Compressor |
|---|---|---|---|---|---|
| Basınç | 20 bar | 25 bar | 25 bar | 12 bar | 20 bar |
| Debi | 22.5 m³/dk | 22.5 m³/dk | 22.5 m³/dk | 22 m³/dk | 23 m³/dk |
| Motor | Caterpillar C13 | Caterpillar C13 | Caterpillar C13 | Cummins B6.7 | Caterpillar C13 |
| Güç | 328 kW | 328 kW | 328 kW | 205 kW | 328 kW |
| Ağırlık | 6.800 kg | 7.500 kg | 7.500 kg | 3.400 kg | 7.000 kg |
| Detay | Bu model | View | View | View | View |
