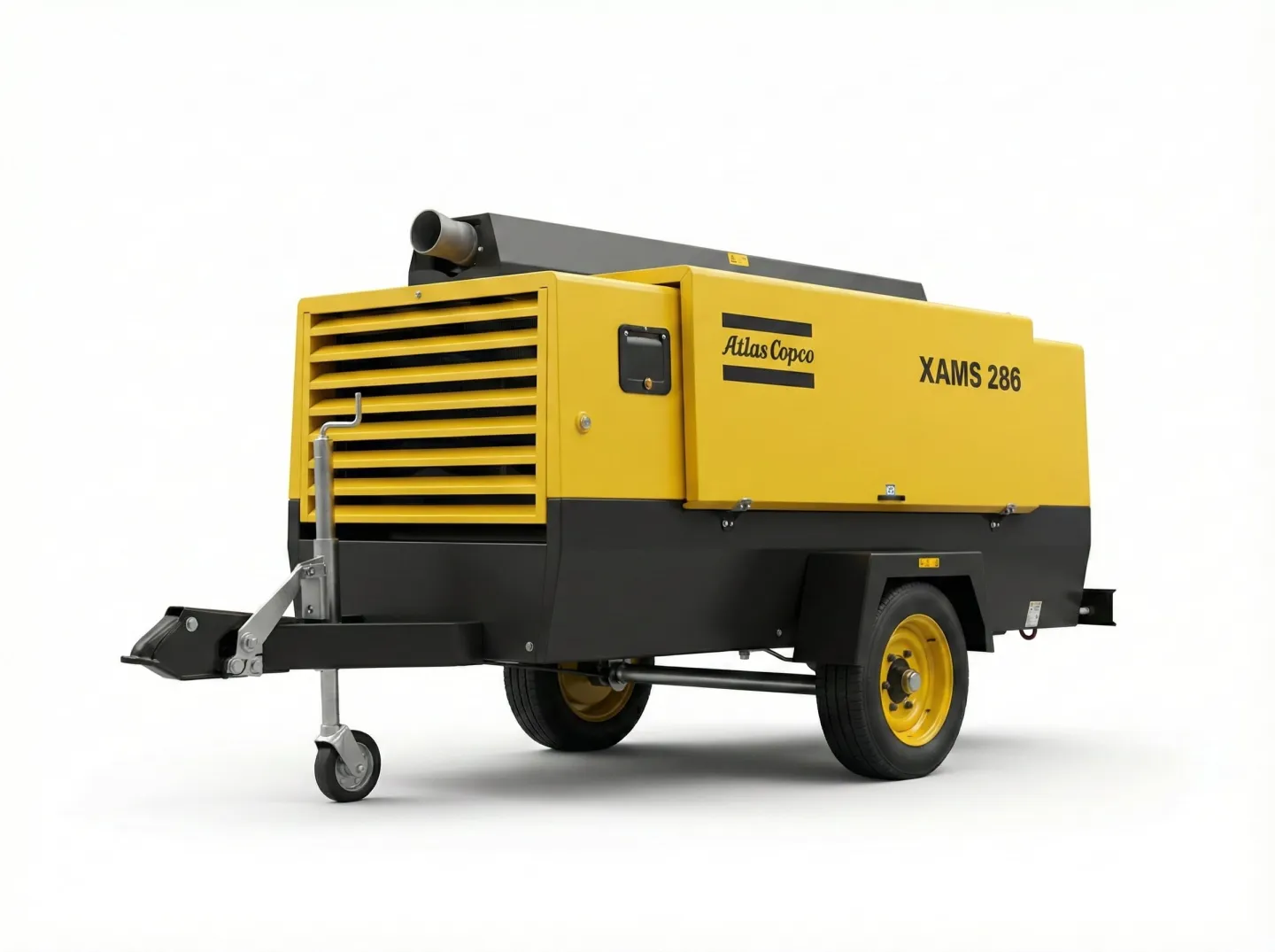

Atlas Copco XAMS 286
Portable Diesel Compressor
The Atlas Copco XAMS 286 is a diesel portable compressor rated at 8.6 bar working pressure and 16 m³/min FAD, used on blasting and construction work. It is fitted with a Caterpillar C9 engine. The listed machine is used, and is offered for sale and rental.
- 8.6 bar Working pressure
- 16 m³/dk Airflow (FAD)
- Caterpillar C9 Engine / class
- Used sale / rental Availability
Need details on this compressor?
Planned technical advice — office in İstanbul Dudullu
Overview
Atlas Copco XAMS 286: what is it?
The Atlas Copco XAMS 286 is a diesel portable screw compressor in the XAMS series. Working pressure is 8.6 bar; free air delivery (FAD) is 16 m³/min. The engine is a Caterpillar C9 (205 kW).
Typical work is blasting and construction. We do not sell new machines. The listed unit is used. Sale and rental are quoted from the İstanbul Dudullu office.
Uygunluk
Applications
Jobsite
Breakers, drills and general site work
Road work
Asphalt cutting, surface work and mobile routes
Kumlama
Blasting and surface preparation
Bakım & Servis
Temporary air and plant support
Bu Makine Size Uygun Mu?
- Jobsite and general construction Very suitable
- Road work / mobile crews Very suitable
- Blasting / surface prep Very suitable
- High-pressure drilling Alternative recommended
- Continuous plant line Alternative recommended
Performance Özeti
-
8.6 bar Working pressure
-
16 m³/dk Airflow (FAD)
-
Caterpillar C9 Engine / class
-
Used sale / rental Availability
Performance Profili
Bored piling
Kazık kuyu temizliği, casing, hava-lift
Forekazık makinesi yüksek basınç / yüksek debi havası
Sector detayı →Abrasive blasting
Blasting, surface prep, pre-paint blasting
Blasting that needs continuous high airflow
Sector detayı →Madencilik ve Taş Ocağı
Drilling, blast holes, pit ventilation
Dusty and hard pit conditions
Sector detayı →Boru Hattı ve Altyapı
Line cleaning, pressure test, pre-weld blasting
Infrastructure and pipeline projects
Sector detayı →Spesifikasyon
Technical specifications
Basics
- Brand
- Atlas Copco
- Model
- XAMS 286
- Compressor type
- Portable Diesel Compressor
- Seri
- XAMS
- Condition
- Used
- Machine no.
- PARK-XAMS286
- Location
- İstanbul
Performance
- Operating pressure
- 8.6 bar
- Airflow
- 16 m³/dk
- CFM
- 564.8 CFM
Motor
- Motor
- Caterpillar C9
- Engine power
- 205 kW
- Yakıt
- Diesel
Physical specifications
- Ağırlık
- 3.300 kg
Neden Tercih Edilir?
- 8,6 bar working pressure
- 16 m³/min FAD
- Used sale and/or rental — no new machines
- Loading from the Dudullu shop; buyer/renter pays transport
Dikkat Edilmesi Gerekenler
- Calculate airflow and pressure need from the job type first.
- Leave a margin for pressure drop on long hose runs.
- Shorten filter and radiator intervals in dusty conditions.
- A different model may be needed for high-pressure drilling.
Condition ve teslimat
- Ekspertiz / kontrol
- Park kaydı — saat ve durum teklifte
Logistics
Dispatch and loading
Transport is paid by the party renting or buying. Çiçek Kompresör does not haul the machine; we refer a recovery-truck or lorry firm and share directions. There is no free nationwide delivery in Turkey.
Vehicle class
Machine size decides whether a standard recovery truck, a lorry, or another suitable vehicle is needed. A lorry cannot enter the shop.
Crane and forklift
The shop has a crane. A lorry cannot come inside, so a forklift is called for lorry loading.
No winch rope
Vehicles that can enter the shop, and vehicles without their own winch rope, are loaded with the crane. No standing lorry, no hourly SLA.
Office / service
Sales are used only; we do not sell new machines. The only office is İstanbul Dudullu. On-site service is not a branch network; field work is planned from this office.
Address: Kadosan Oto San. Sit. R Blok No: 8/10, Dudullu OSB, 34755 İstanbul — İstanbul Dudullu
Comparison
Benzer Modeller ile Karşılaştırın
| Özellik | Atlas Copco XAMS 286 | Atlas Copco XAMS 286 Portable Compressor | Atlas Copco XAS 288-10 PACE Portable Compressor | Atlas Copco XAHS 286 Portable Compressor | Atlas Copco XAVS 307 Portable Compressor |
|---|---|---|---|---|---|
| Basınç | 8.6 bar | 8.6 bar | 10.3 bar | 12 bar | 14 bar |
| Debi | 16 m³/dk | 16 m³/dk | 15.5 m³/dk | 16.5 m³/dk | 17.5 m³/dk |
| Motor | Caterpillar C9 | Caterpillar C9 | John Deere 4045 | Caterpillar C9 | Caterpillar C9 |
| Güç | 205 kW | 205 kW | 140 kW | 205 kW | 250 kW |
| Ağırlık | 3.300 kg | 3.300 kg | 2.800 kg | 3.400 kg | 3.800 kg |
| Detay | Bu model | View | View | View | View |
Teklif
Bu model için get a quoteın
Basınç, debi ve iş tipinizi yazmanız yeterli; planlı ve hızlı dönüş yapıyoruz.
